S220 RPT

Maximum pane width
1200 mm

Maximum pane height
4500 mm

Maximum glazing gaps
40 mm

Maximum panel weight
200 kg

Thermal performance
Uw 1,54 W/m²K

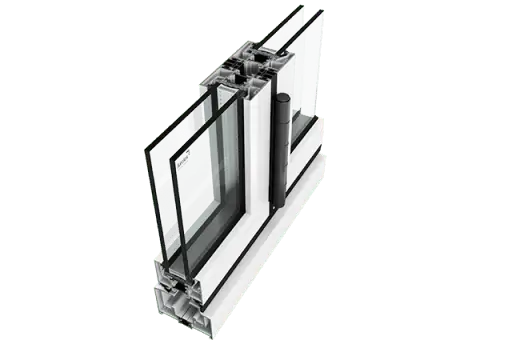

The S220 RPT is a series of specially reinforced bifold sliding doors.

It is our most versatile series: It combines minimalism, large dimensions and great thermal performance in the same system.

Thanks to its minimalism, the incidence of aluminum is reduced. In this way, we get an unbeatable thermal performance (Uw), reaching values up to 1.54 W/m²K

Its special reinforcement, allows for the manufacture of enclosures larger in size in terms of panel height and width, and it can also incorporate panels up to 4.5 m high, 1.2 m wide and 200 kg/panel.

Features of the S220 RPT bi-fold doors.

  • Special reinforced series made from thermally broken aluminium and quadruple weathertight gaset.
  • Thermal insulation values (Uw) from 1.54 W/m²K, depending on the glass used.
  • Glass panels up to 3000 mm high, 1200 mm wide and 100 kg weight. Possibility of adding reinforcing profile for glass panels up to 4500 mm high and 200 kg weight
  • Super slim profiles, meeting leaves just 102 mm (144 mm with reinforcement column).
  • Available with 40 mm gaps for the incorporation of 32 mm double glazing.
  • Leaves can open inwards or outwards.
  • Fitted with horizontal and vertical glazing beads.
  • Includes U-shaped compensation profile to correct minor misalignments.
  • Optional incorporation of standard handles, business-type handles or three-point bolt locks.

Fittings and accessories.

It can incorporate standard handles, business-type handles or three-point bolt locks. Accessories are available in black. See available fittings and accessories.

Aluminium profile finishes.

The S220 RPT bi-fold door profiles can be lacquered in the colours of the RAL Classic range, or given an anodised finish or an imitation-wood effect. Choose the finish for your bi-fold doors.

Glass and panels.

Insulating glass

Two or more glass sheets separated by a space that prevents any contact between the glass.

Further information ->

Insulating glass

Insulating glass

Insulating glass, also known as double glazing, multiple glazing, or Climalit (trademark), consists of two or more glass sheets separated by a space that prevents any contact between the glass.

The inner space between the glass sheets is usually filled with dry air or other inert gas, but it is also possible to form a vacuum, thus improving their performance. In any case, the spaces are hermetically sealed to prevent air flow and the entry of pollutants.

There are also insulating glasses with special 'very low emissivity' treatments, a transparent metal coating on the inner surface, which provides 50% more insulation than conventional double glazing.

Insulating glass can be combined with other solar control functions, low emissivity, etc.

Insulating glass properties.

If there is a positive aspect to double glazing compared to other glass models, it is the possibility of creating customised glass according to the performance required. Therefore, this type of glass can incorporate heat, acoustic and safety insulation features.

For example: a product with highly beneficial features can be achieved by combining an insulating glass with a low-emissivity and solar control glass all in the same panel, even adding a laminate or acoustic laminate.

In addition, thanks to its space this glass offers very low thermal transmittance and therefore great thermal insulation, which will provide air conditioning savings of over 50%.

Finally, it must be noted that the gas contained in the space will also greatly influence the properties of the glass.

For example: the main objective of the SF6 is to improve the acoustic insulation by reducing approximately 3 dB. Argon, on the other hand, has a low heat conductivity, lower than that of air, which provides greater thermal insulation (reduction of the U value by more than 0.3 W/m²). On occasions, a mixture of two of these gasses is used to achieve specific properties.

Chamber size and energy transmittance.

The thermal transmittance (U-value) in a glass sheet has an inverse relationship to its thickness. The higher the interlayer profile (and therefore the greater the distance between the glass sheets), the lower the radiation transmission (the U-value decreases).

Please note: in spaces greater than 15-18 mm, the air currents created inside them increase energy transmission, so the generic rule referred to here does not apply.

Aluminium profile finishes.

Lacquering

There are 210 shades from the RAL Classic range available for our profiles and accessories.

Further information ->

Anodising

Profiles with high resistance finish and different metallic effects: steel, silver, gold, copper, chrome, etc.

Further information ->

Embellishments

Beech, pine, oak, tigerwood and sapele are just some of the woods that embellishments imitate with great realism.

Further information ->
